Steam generator - Steam generator for saunas 12kW - OC120B

Product detailed description

Oceanic presents a highly intelligent steam generator from the top line OC-B. All models of this top series are equipped with an automatic descaling mode. The high-quality steam generator OC- 120B is equipped with an intelligent digital controller to control automated steam generation.

Information

• Model: OC- 120B
• Oceanic presents a highly intelligent steam generator from the top line OC-B.
• All models of this top series are equipped with an automatic descaling mode.
• The high-quality OC-B steam generator is equipped with an intelligent digital controller to control automated steam generation.
• The system enables timed settings in the range between 15 and 240 min, or the start of a continuous non-stop operation mode, i.e. without a time limit.
• The temperature setting of the developer works on the display in values between 30 and 60 degrees Celsius and Fahrenheit, or settings for home or public operation are possible.
• The generator is also equipped with a sequential heating system, thanks to this ability the generator can generate a large amount of steam.

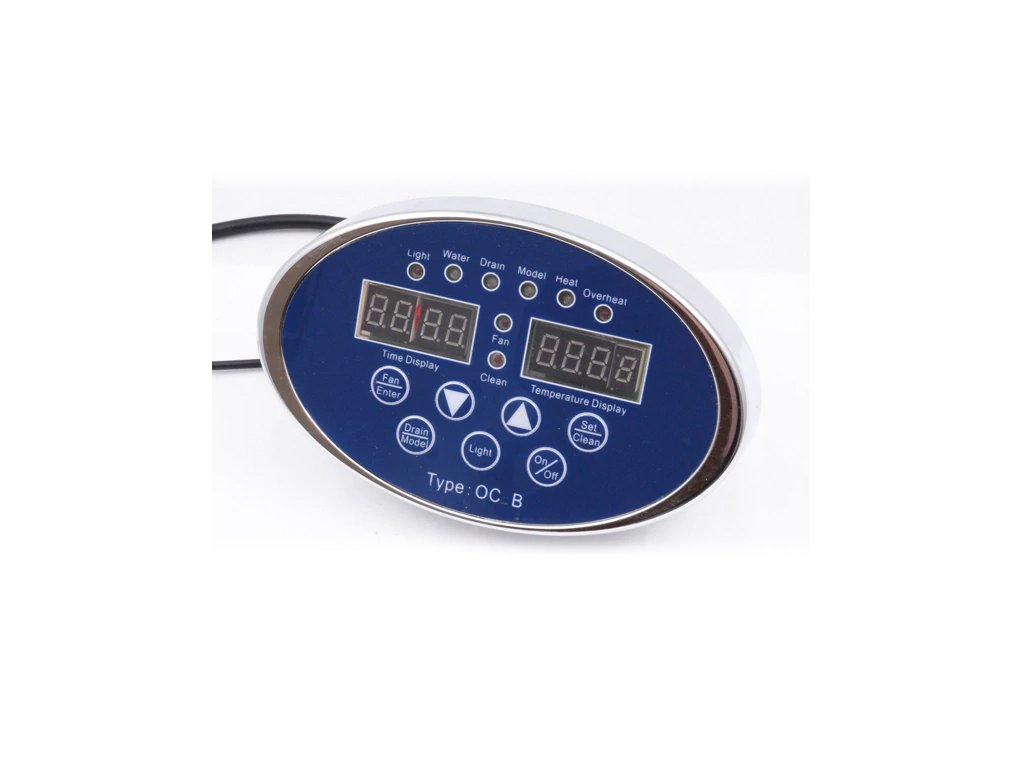

• For advanced settings, it is possible to use the digital control mode signal with LED diagnostics.
• Other features include protection against overheating and boiling of dry water in the evaporation unit.

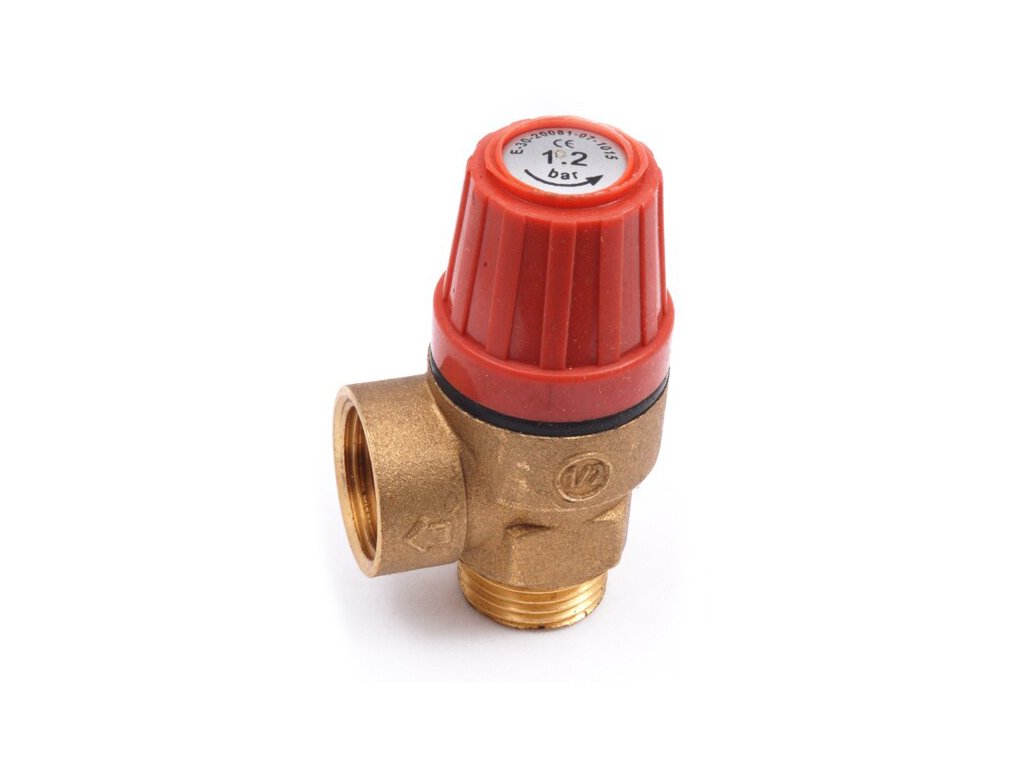

• A 1.2BAR pressure protection with an overpressure valve is a matter of course.

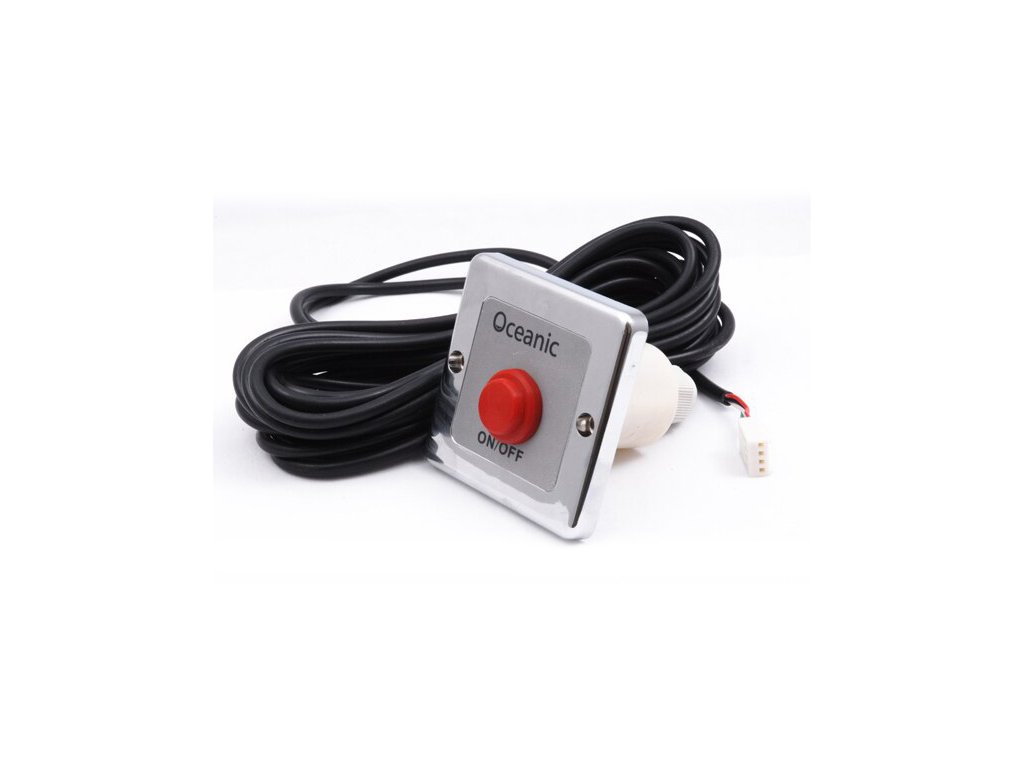

• The system is equipped with a new energy saving technology – the ECO button.
• This button, located inside the cabin, is available when necessary to effectively, economically and immediately reduce the temperature of the steam in the chamber.
• The highest line of generators OC,, B,, is equipped with an intelligent coil heating system for self-protection and life extension, where the highest spiral is heated last if necessary.
• The highest spirals tend to be the most stressed by traffic.
• The system of the OC "B" series is also equipped with an automatic descaling program after each system shutdown and a drain valve.
• These top-of-the-line models offer an automatic cleaning mode that works on the principle of rapid steaming, other practical functions include low-energy operation and a range of outputs from 3kW to 18kW.
• A 24-month warranty is a matter of course.
• This model is approved and compliant with European standards with a CE quality certificate and is suitable for commercial operations.

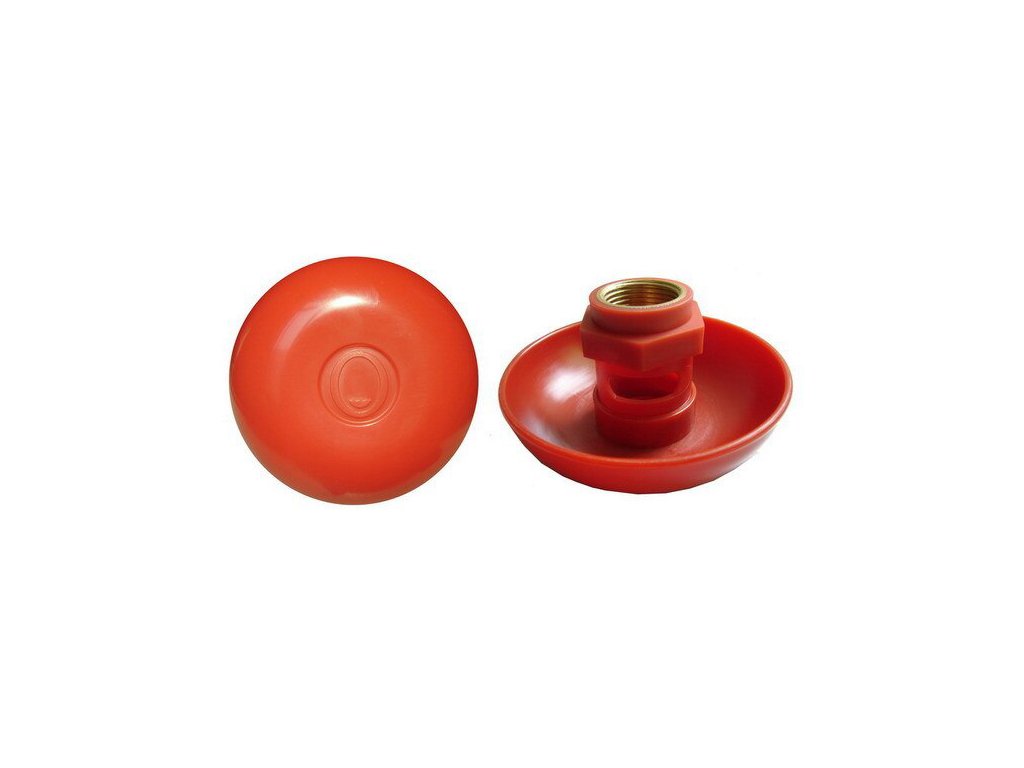

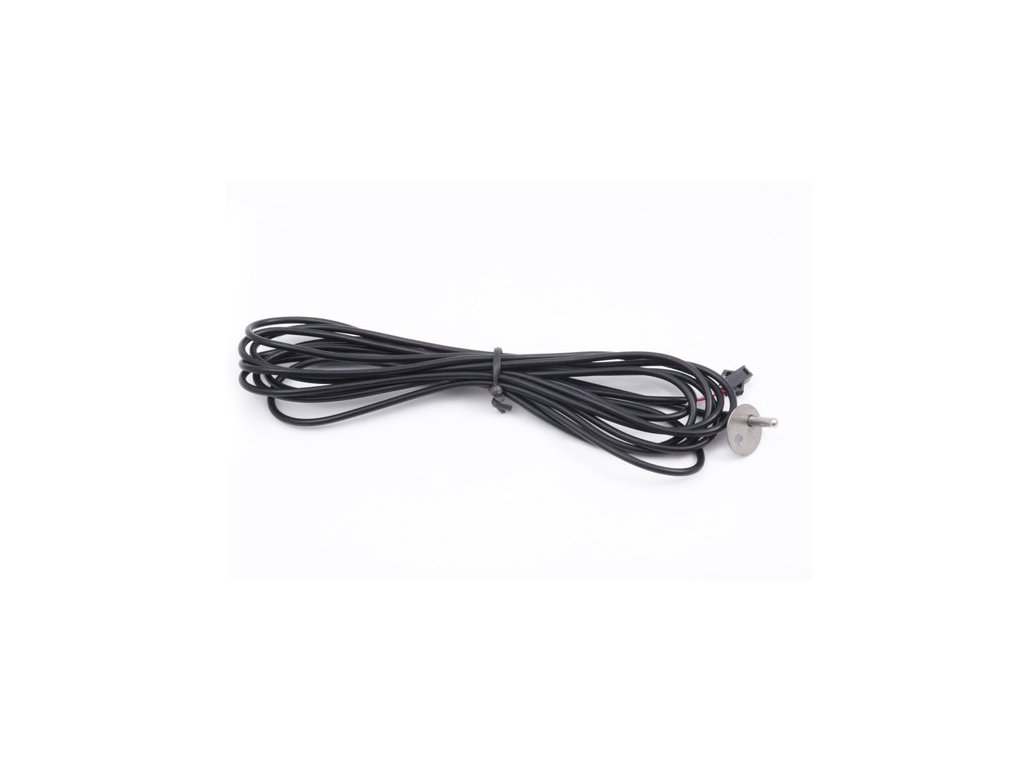

• The package includes: Steam nozzle, control panel with cable, economical ECO button, overpressure valve, heat sensor, automatic descaling system.

  Guide to building a steam bath - PDF

Specifications

• Voltage: 230/400 V
• Power consumption: 12 kW
• Phase N~: 1/3
• Stream A: 52/17
• Pressure protection: 1.2 BAR
• Room volume: 8 – 12 m3
• Dimensions (l, w, h): 580x260x500 mm

Important

• Read the manual before installing and operating the product.
• This device must be connected to an insulating rod.
• This device must be installed by a competent person.
• Disconnect the power source before handling the electrical contacts.
• Confirm the correct voltage for your 1 or 3 phase steam generator .

Steam bath safety precautions

• The elderly, pregnant women, or those suffering from heart disease, high blood pressure, diabetes, or any other medical condition should seek professional advice before using a steam bath.
• Smoking is not allowed in the steam room.
• Avoid entering a steam room after strenuous exercise.
• Do not use the steam room if you are under the influence of alcohol.
• Leave the steam room immediately if you feel sleepy, nauseous or have other difficulties.
• Make sure the steam room is well ventilated.
• The product is not recommended for use by persons under the age of 16.
• For commercial purposes, the operator should place these safety measures in a visible location.
