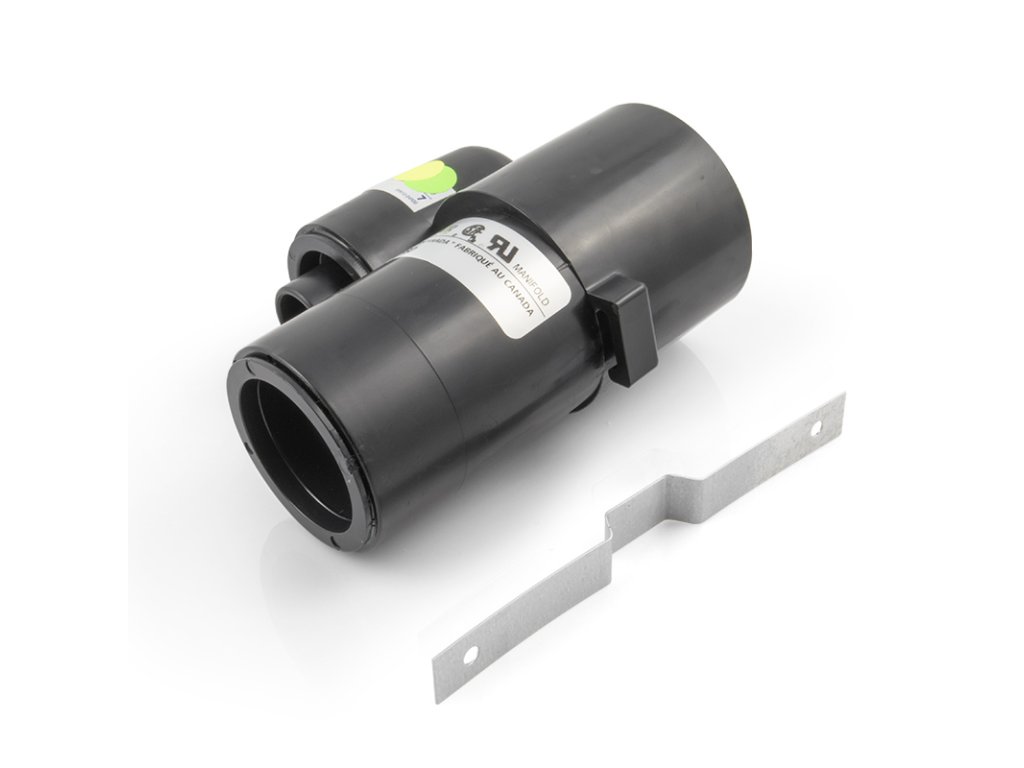

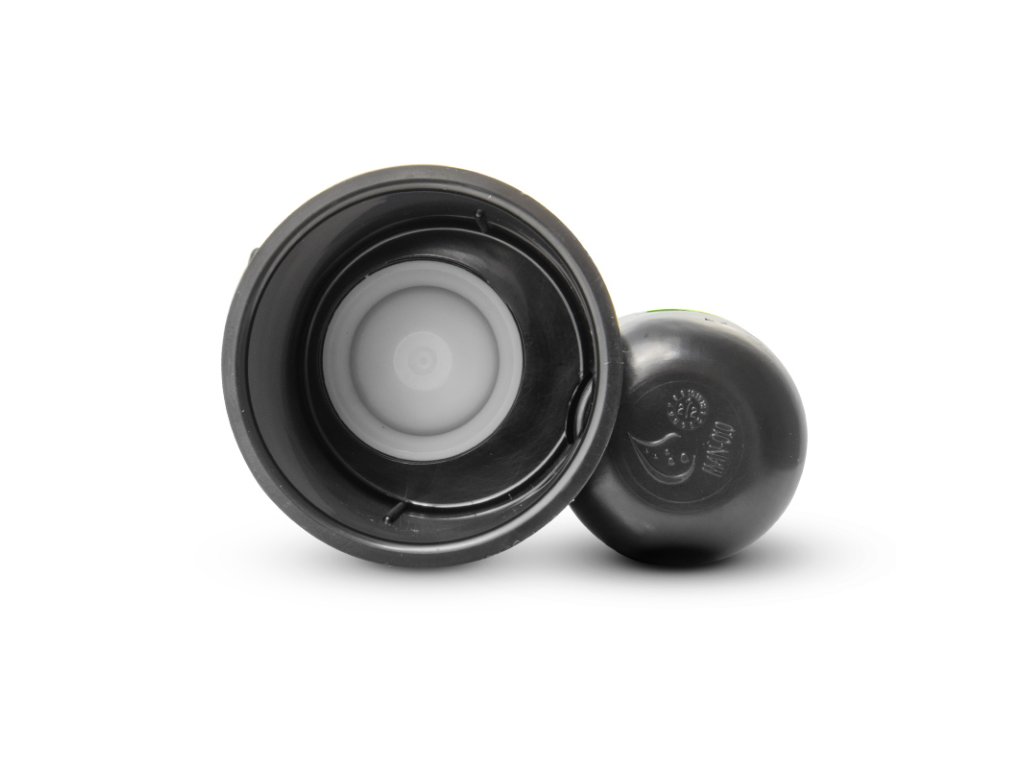

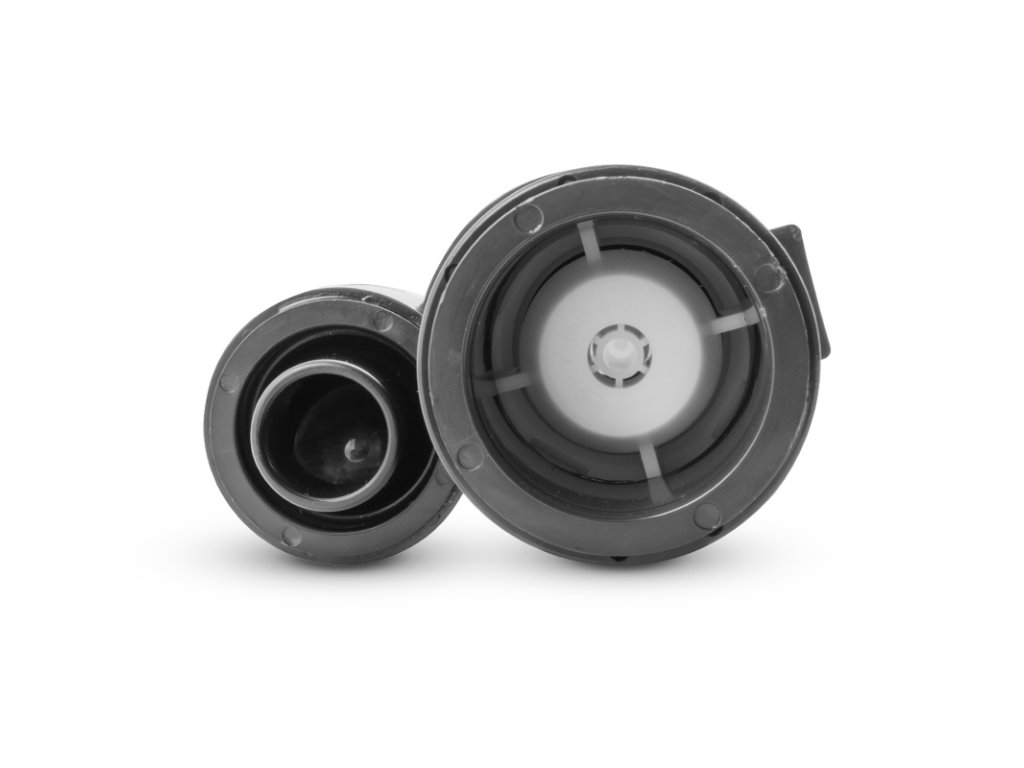

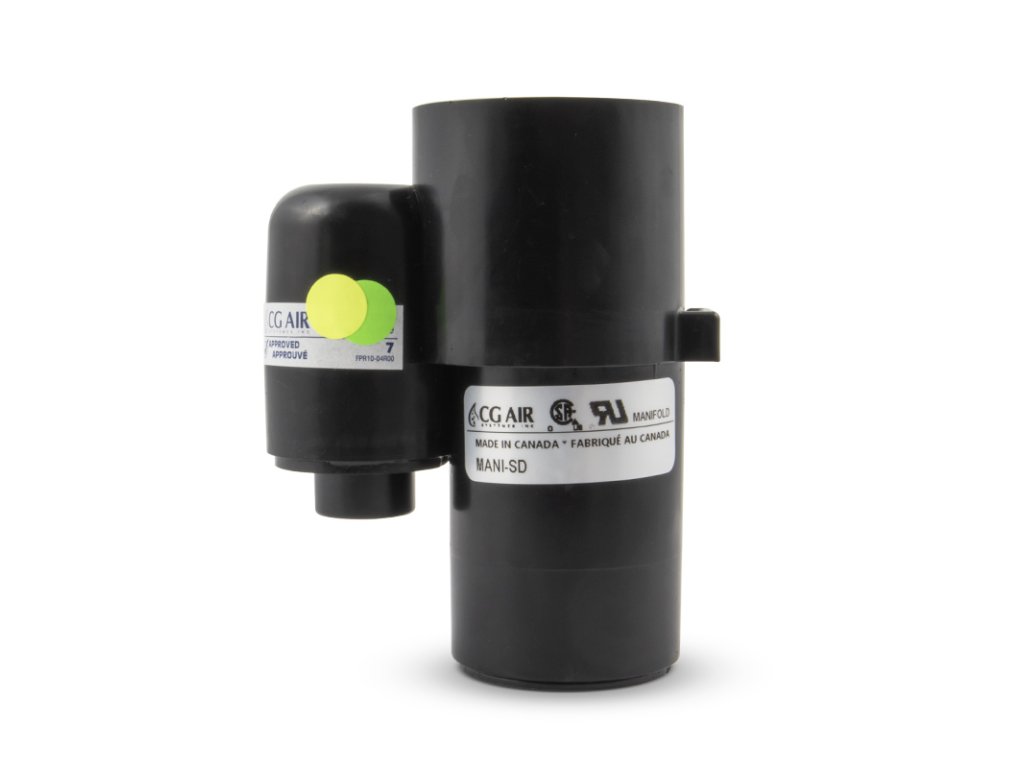

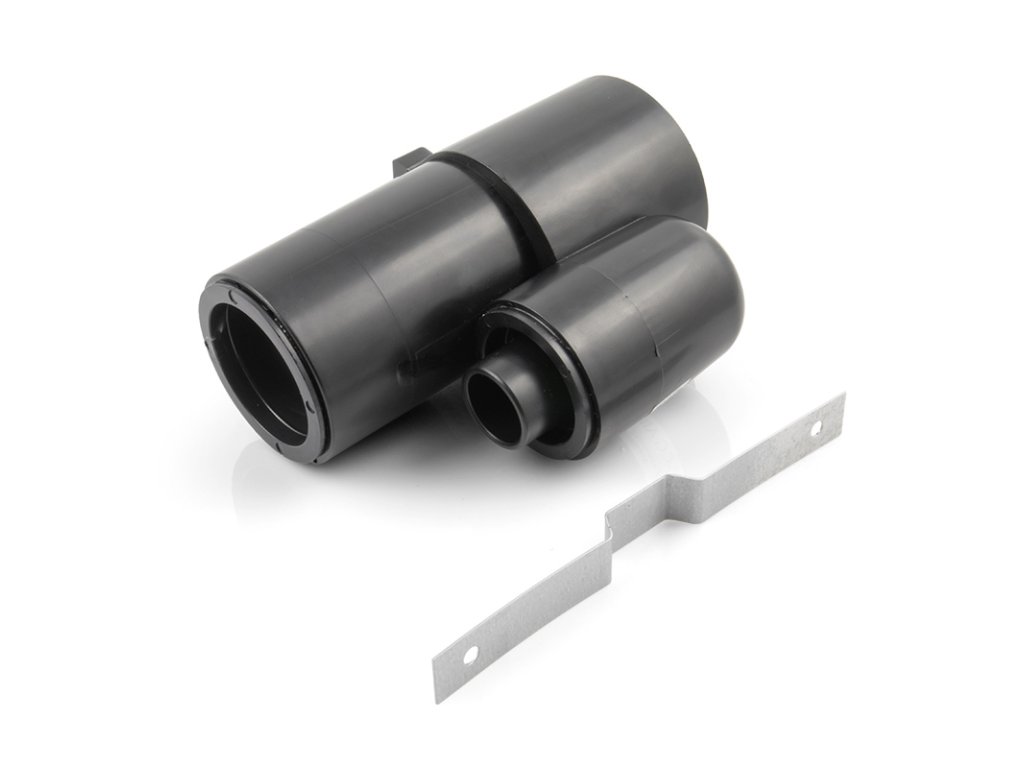

CG Air Double Blower Check Valve
Code: VALVECG-Product detailed description
Safety equipment
This small check valve is designed to provide a second layer of protection when installed in a Hartford loop system.
Check valve with protective function
The valve opens only to allow air to flow through the nozzles during compressor operation. Once the compressor shuts down, the valve closes to prevent backflow into the blower.
Installation
The valve must always be installed in a vertical position. The location in the Hartford loop must be such that water can never reach the top of the valve, which will prevent water leakage when the compressor is turned on.
Translated with DeepL.com (free version)
Additional parameters
| Category: | CG AIR kompresory |
|---|---|
| Weight: | 0.2 kg |

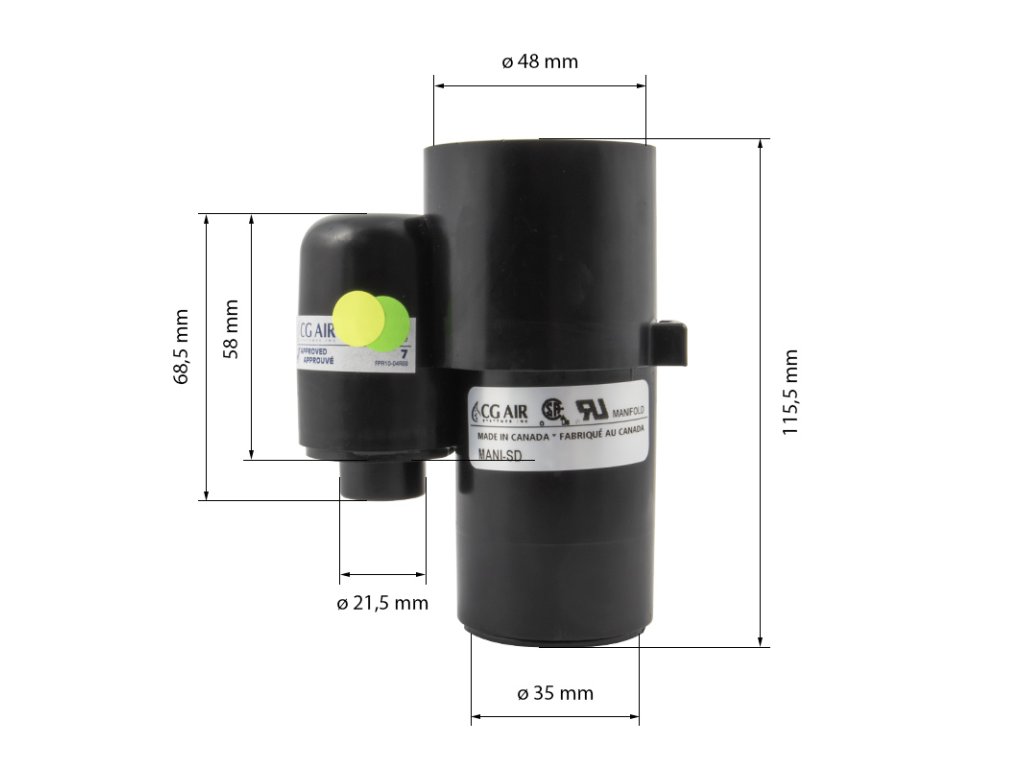

| Připojení vzduchu:: | 48 mm |
